42.000 Volts!

SUPER COIL FOR FORD D.I.S. TYPE IGNITIONS

This coil will overcome all problems due to poor ignition power typical of coil pack ignition systems. It gives more energy and voltage to the spark plugs the performance continues even at high rpm.It gives better combustion in chamber resulting in less exaust harmfull emission - more engine power - better fuel economy. For all engines - Very important to get max power from modifyed engines.

It is suggested also on cars equipped with  LPG or CNG for more torque - better engine performance at reduced costs.

Direct plug in for All FORD engines from 1989 to now.The Super DIS coil gives further increase in engine performance when used together with our Special Field Effect Spark PLugs and High Performance Silicon Cables.

Kits available also for other engines please ask for more information.



POWER UP YOUR OLD AND WEAK IGNITION WITH WASTED SPARK AND INSTALL OUR POWER KIT
Wasted spark ignition fires 2 spark plugs each time - This system (good for the old days) looses energy and can now been improved by installing our KIT. It replaces your old coils and wires. Torque Master (360° spark) plugs make the system very Powerfull

Stock coils  installed FIAT-LANCIA-ALFA ROMEO on recent models with improved ignition using 1 coil per each cylinder

Stock coils with wasted spark installed on FIAT-LANCIA-ALFA ROMEO from 1993

BELOW YOU FIND AN EXAMPLE OF INSTALLATION ON FIAT BUT THE SAME KIT IS APPLICABLE ON MANY OTHER VEHICLES. Shipping to your Europe by Fedex

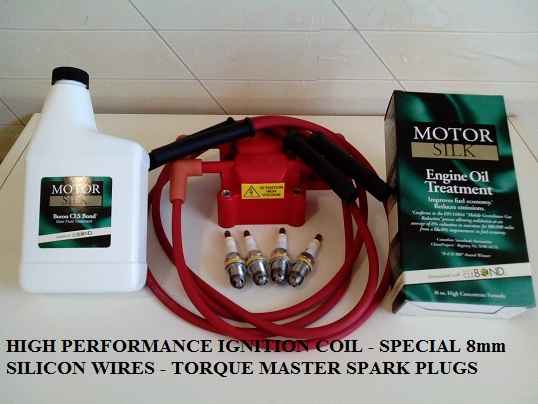

POWER KIT INCLUDES: HIGH ENERGY SUPERCOIL SPECIAL 8MM SILICON IGNITION WIRES TORQUE MASTER FIELD EFFECT SPARK PLUGS TO REVITILIZE AND PROTECT YOUR ENGINE WE SUGGEST ALSO MOTOR SILK ENGINE AND GEAR BOX More Power from your engine- Improved Torque and Acceleration - Less Fuel Consuption - Much Cleaner Exhaust Emissions - Super Durable Kit

45.000 Volts!

Supercoil DIS for  double spark  ignition systems with 2 single coils:

For example on: Lancia Delta Integrale Turbo - Dedra -Y- Fiat Coupè- Cinquecento- Punto-Palio-Siena-Tipo180016v-Alfa 33-145/1461300 -155 2000 Turbo 16V Q4.

Very interesting price. Due to the increased Voltage supplied by the Supercoil and Coil connectors SAE type, it is necessary to replace  the standard cables with our Customized  Silicon  Red Colour or GREY Colour   8mm "ULTRA RACING" Cables.



Dual- Spark or also Called Wasted Spark ignition system  replaced the distributor ignition the spark is distributed by an electronic control device usually drives a  single 4 terminalS coil with 4 spark plug wires ( in the case of a 4-cylinder engine ) It fires two spark plugs simultaneously For example the spark plug in the cylinder 1 where combustion  occurs and the spark plug in the cylinder 4 during unloading  therefore one spark is lost.  Example a 4-cylinder engine we see that in the cylinders 1 and 4 the sparks are produced simultaneously and in the same way in cylinders 3 and 2. This way of distributing the spark inevitably loses  ignition power on spark plugs because the energy sent by the coil is divided on 2 spark plugs .

It 'important to know that one spark plug is polarized incorrectly in each pair of cylinders so a minimum 20% of energy is removed from the spark plug in the cylinder in combustion phase. When spark plugs begin to wear the electrodes and  covered with deposits  the voltage required to make the spark increases. The standard coils  will wear out with time and may be less efficient in the transformation from low voltage to high voltage. Spark plug cables can deteriorate prematurely as they work always in pairs and can cause current leakage. All these factors result in the risk of having a spark that does not have much strength to make optimum combustion at all engine speeds. Also the fact that the system fires   simultaneously always two spak plugs each  time even on the cylinder where there is no combustion is due to increase spark plugs wear The stock coils could not supply a very powerful ignition otherwise the wear of the spark plugs cables   (mostly carbon resistive cables)  and plugs would be excessive, and their substitution would have been too frequent. Then the coils output on this type of ignition is not usually high and they just give  enough energy to fire standard spark plug with lean and stochiometric ratio with standard compression .


A way to increase spark energy IN THIS wasted spark SYSTEM is by installing an
   HIGH OUTPUT IGNITION  coil
+ Low Resistance (SPIRAL metallic core) 8MM Silicon Magnetic Wires
+ Torque Master Spark Plugs with a much greater 360° spark surface and incredible durability without losing performance

ON VW AUDI SEAT SKODA  MANUFACTURED AFTER THE IGNITION SYSTEM HAS BEEN IMPROVED  BY INSTALLING 1  IGNITION COIL EACH CYLINDER. Since you cannot install the 1 coil each spark plug system  because it requires a completely different ECU and ignition module the only way to improve your stock weak (wasted spark) system is by installing our complete KIT that is: 1) Supercoil - 2) High Perfomance Low Resistance Silicone "Magnetic" Ignition Cables - 3) Torque Master Spark Plugs with a 360° spark 2/3 time larger and efficient spark power. In other words you will have  3 up grades (ignition improvements) all at the same time. It is then very important to buy the complete KIT to obtain the Best Possible Performance from your engine. The other positive thing is that you are replacing your old ignition parts and are doing maintenance service. You are not spending money for decorative items but your are replacing parts that are old and due to be serviced by installing our KIT you take the opportunity to greatly  IMPROVE the stock system

IGNITION POWER KIT FOR WASTED SPARK SYSTEM (DOUBLE SPARK) FOR   VW - AUDI A3 1.6   ENGINE CODE  AEH, AKL, APF-AVU- BFQ-BGU- BSE- BSF- CCSA- CMXA--CBZB-BSE-CBZB AUDI A4 ENGINE CODE  AHL-ANA-ARM-ALZ    SEAT ALHAMBRA, ALTEA, AROSA,CORDOBA,EXEO,IBIZA,INCA,LEON,TOLEDO SKODA FABIA,OCTAVIA,ROOMSTER,YETI- VOLKSWAGEN  BEETLE 1.2 TSI, BORA,CADDY,FOX ,GOLF IV, GOLF V,GOLF VI, JETTA V,JETTA VI, LUPO,MULTIVAN ,NEW BEETLE,PASSAT IV,PASSAT V,PASSAT VI,POLO III,POLO IV,SHARAN,SPACEFOX,TOURAN,TRANSPORTER V POWER IGNITION COIL VW GOLF IV POWER IGNITION COIL AUDI POWER IGNITION COIL SKODA

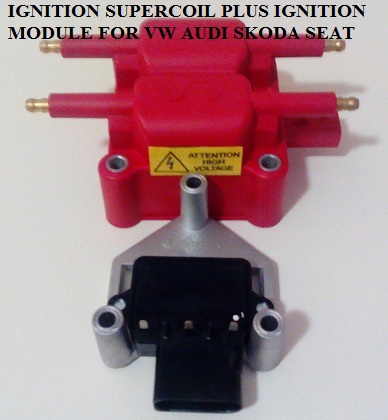

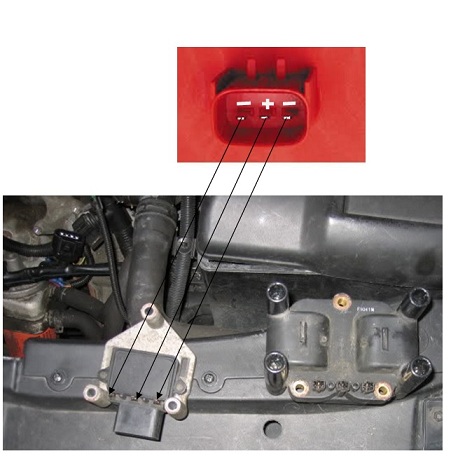

Easy installation! Remove the original ignition module by unscrewing the bolts Connect the 3 flat pins of Supercoil to ignition module as shown oh the photo. Use female fastons and 3mm wires The central pin is (+) current +12V the side pins are (-) signals. To make sure you are doing the right connection switch on the key without turning the engine(engine off) and check with a tester thaT central module PIN is ACTUALLY supplying 12Volts Install spark plug cables on Supercoil following the sequence cylinder 1-4 and cylinder 2-3. The same sequence as you would do with stock coil Install Special Torque Master Spark Plugs which make the KIT ULTRA PERFORMING

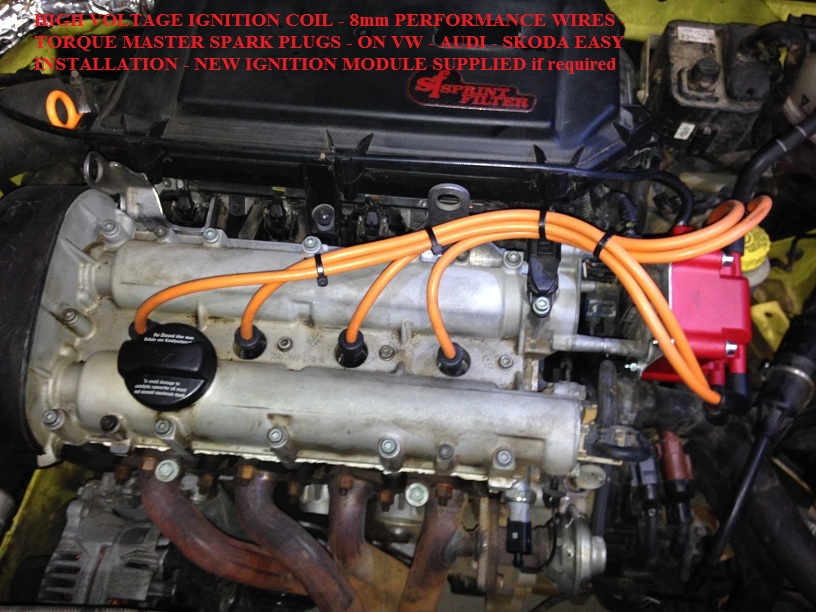

The Supercoil  has also  brass terminals which are more costly and better conductors In the above photo the Supercoil has been installed on a metalic plate for a better heat dissipation  easy to built  and the final installation is clean and professional More Power from your engine- Improved Torque and Acceleration - Less Fuel Consuption - Much Cleaner Exhaust Emissions - Super Durable Kit Shipping to  Europe by Fedex



For those very demanding customers who want to have AN ULTRA POWER IGNITION SYSTEM we can supply Direct Hits Capacitors. Direct Hits Capacitors will be screwed directly on top of Torque Master spark plugs and increase IGNITION POWER obtaining even a  stronger SPARK intensity

Contacts

Torque Master Europa

Address:

  Via Antonio Gramsci
04010 Norma (Latina) - ITALY

Tax Registration NO. 02488890597    Chamber of Commerce NO. R.E.A. 175687

Tel +39 (0) 773-354553

Dual- Spark  also Called Wasted Spark ignition   fires 2 spark plugs simultaneously and loses  ignition power on spark plugs because the energy sent by the coils is divided on 2 spark plugs .  A way to increase spark energy IN THIS wasted spark SYSTEM is by installing 3 separate HIGH OUTPUT IGNITION  coils + Low Resistance (SPIRAL metallic core) 8MM Silicon Magnetic Plug Wires + Torque Master Spark Plugs with a much greater 360° spark surface and incredible durability without losing performance

IGNITION POWER KIT for  vw Transporter T4 Bus V6 sUPERCOIL vw Transporter T4 Bus V6

COMPLETE KIT INSTALLED -Easy installation -Wiring instructions available with the KIT Shipping to  Europe by Fedex

IGNITION POWER KIT for vw Sharan VR6 sUPERCOIL   vw Sharan VR6

IGNITION POWER KIT for  VW Golf III VR6 sUPERCOIL VW Golf III VR6

Low Resistance (SPIRAL metallic core) 8MM Silicon Magnetic Plug Wires Special Torque Master "Field Effect" Spark Plugs with 360° rotative spark, 2/3 time bigger spark compared to standard plugs. Torque Master Spark Plugs are supplied specific for each application. Available also for  Special applications or  LPG  CNG Fueled engines. COMPETITIVE PRICES! TO REVITILIZE AND PROTECT YOUR ENGINE WE SUGGEST ALSO MOTOR SILK ENGINE AND GEAR BOX

HIGH PERFORMANCE IGNITION COIL FOR VW VENTO VR6 - vw SHARAN VR6 -vw GOLF III VR6 - FORD Galaxy 2800 i V6 4x4 - vw Transporter T4 Bus V6 VERY IMPORTANT UPGRADE FOR LPG AND CNG FUELLED ENGINES

IGNITION POWER KIT for  VW VENTO VR6 sUPERCOIL  VW VENTO VR6

IGNITION POWER KIT for  FORD Galaxy 2800 i V6 4x4 sUPERCOIL COIL FORD Galaxy 2800 i V6 4x4

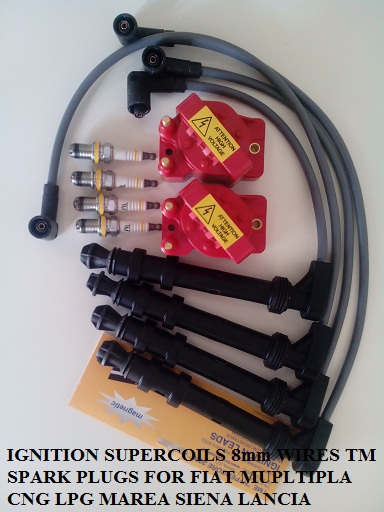

-HIGH PERFORMANCE  IGNITION COILS  -TORQUE MASTER SPARK PLUGS - SPECIAL 8MM SILICON ULTRA CONDUCTOR WIRES FOR: FIAT MULTIPLA 1600 16V -FIAT MULTIPLA 1600 16V NATURAL POWER -PER FIAT MULTIPLA 1600 BLU POWER  FIAT BRAVO 1600 16V - FIAT BRAVA 1600 16V -  FIAT MAREA  1600 16V -PER FIAT PALIO 1600 16V  FIAT SIENA 1600 16V  -  FIAT STRADA PICK UP 1600 16V - LANCIA DEDRA 1600 16V- LANCIA DELTA 1600 16V-  LANCIA LYBRA 1600 16V-  SUITABLE FOR ENGINES  WITH LPG OR CNG EASY INSTALLATION More Power from your engine- Improved Torque and Acceleration - Less Fuel Consuption - Much Cleaner Exhaust Emissions - Super Durable Kit
